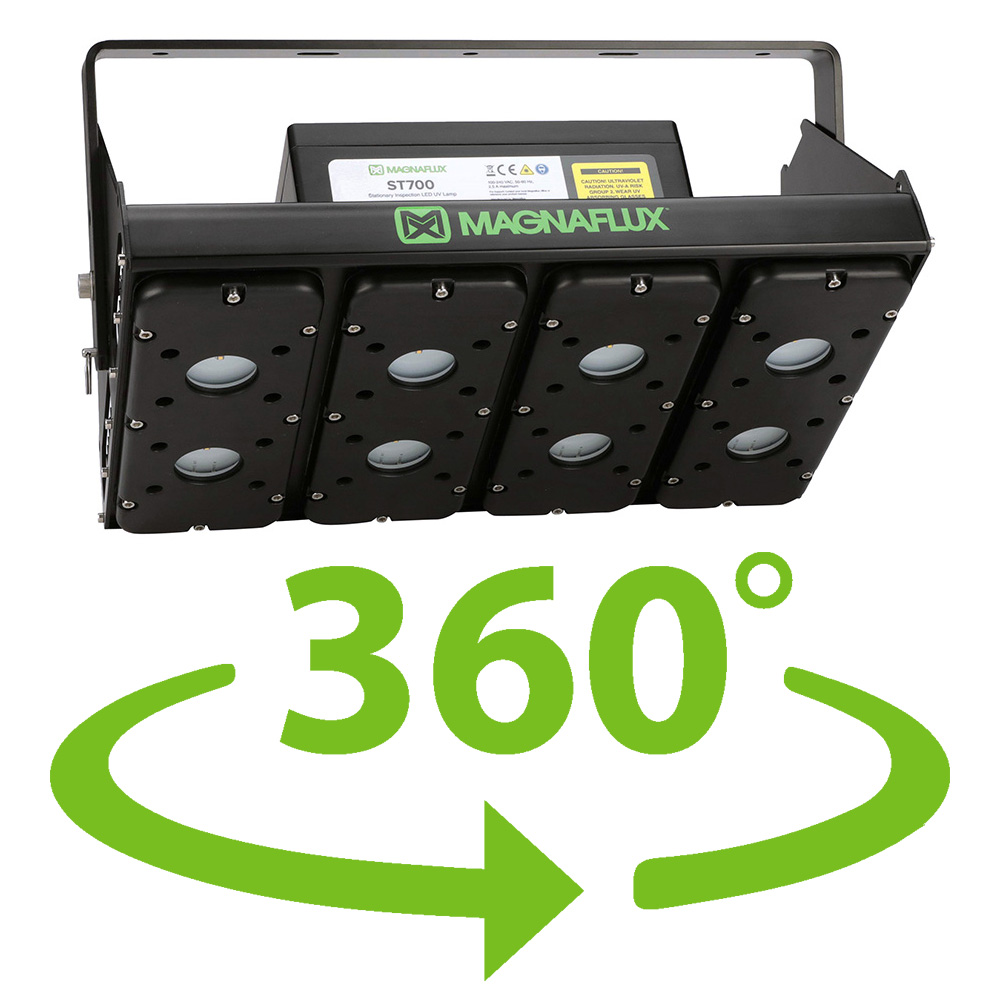

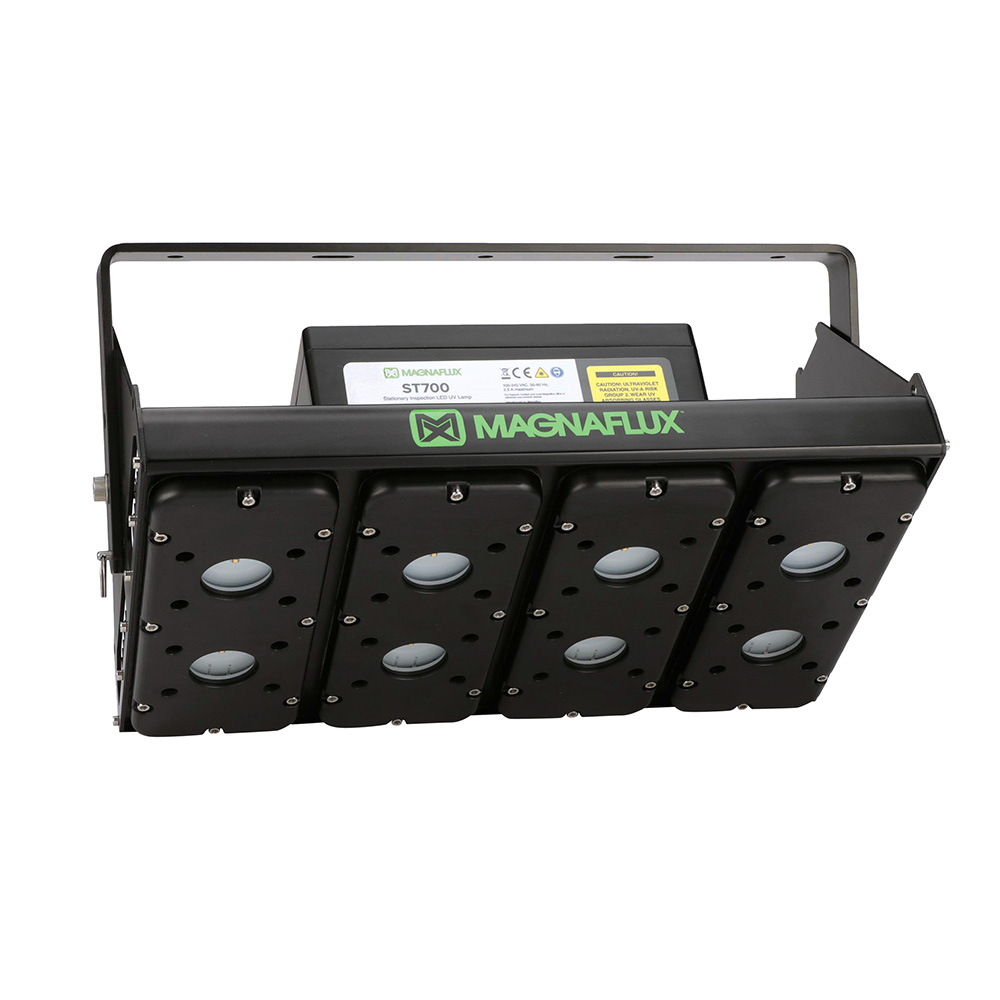

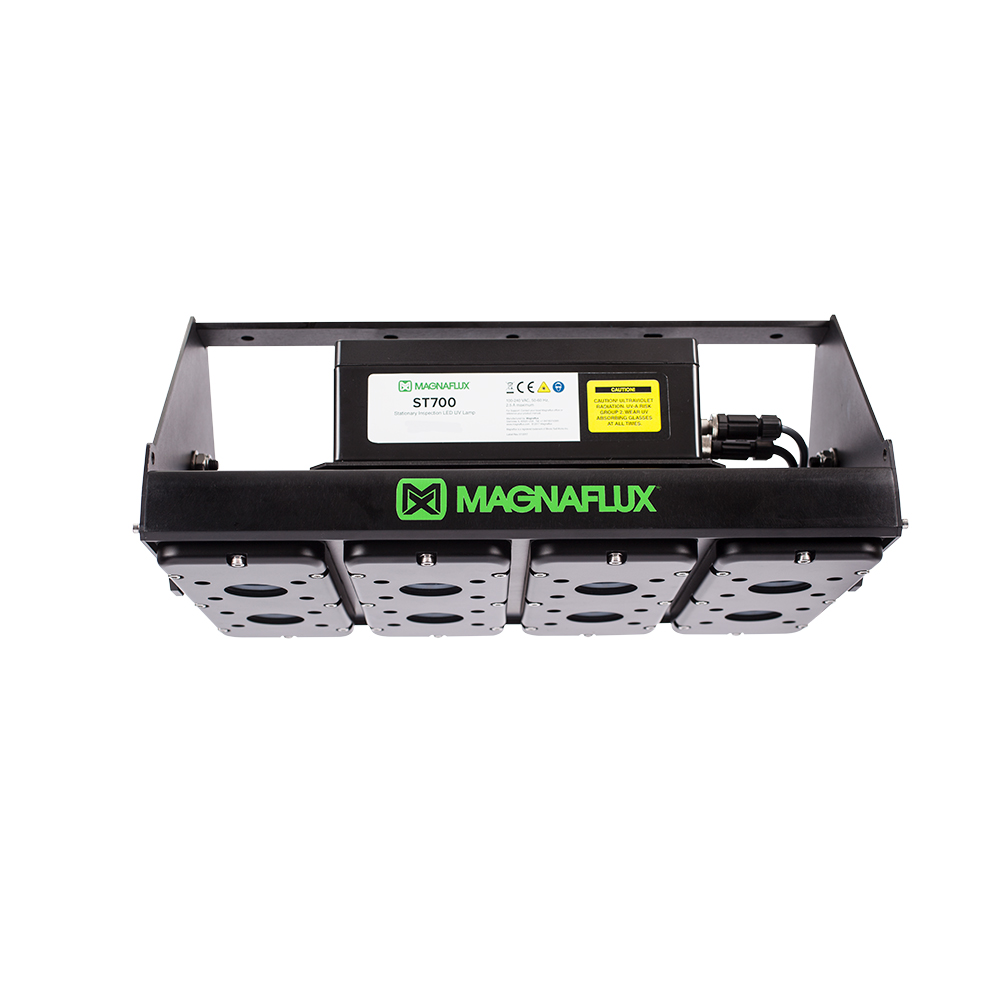

ST700

Stationary Inspection LED UV Lamp for Fluorescent NDT

The ST700 is an inspection-grade overhead LED UV flood lamp with high-intensity UV-A illumination for non-destructive testing examinations such as fluorescent penetrant and magnetic particle testing.

The ST700 projects an ultra-wide, even beam of UV-A light straight onto the inspection area, allowing for quick examination of parts with minimal part handling. The high intensity beam makes indications stand out bright and clear, speeding up the inspection process. The ST700 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile.

The IP65 aluminum case stands up to harsh environments and a range of mounting and angling options allow it to be set up anywhere in the inspection process; from mag benches to wash stations.

Benefits

Speed up the inspection process

  • Inspect more of the part at once thanks to the ultra-wide beam
  • Eliminate additional steps and equipment involved with using a secondary hand-held inspection lamp

Minimize risk of missing indications

Real-world reliability

  • Fully sealed construction prevents dust and water damage
  • Maintain UV intensity and coverage over time with non-clouding, proprietary lenses
  • Rugged, impact resistant metal construction designed for NDT environments

Work in comfort

  • Keeps inspection booths cool thanks to the fan-less, LED technology
  • Eliminates hazardous mercury vapor for safer working conditions and better EHS compliance
  • Easily maintain and changeover equipment with built-in white light

  Features

  • High intensity compliant UV-A illumination

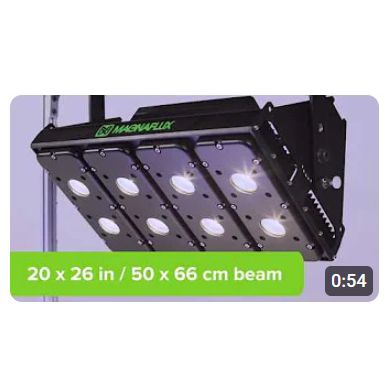

  • 20 x 26 in (50 x 66 cm) wide, uniform beam on standard model at 36 in (90cm)
  • IP65 sealed construction prevents damage from water, vapor or dust

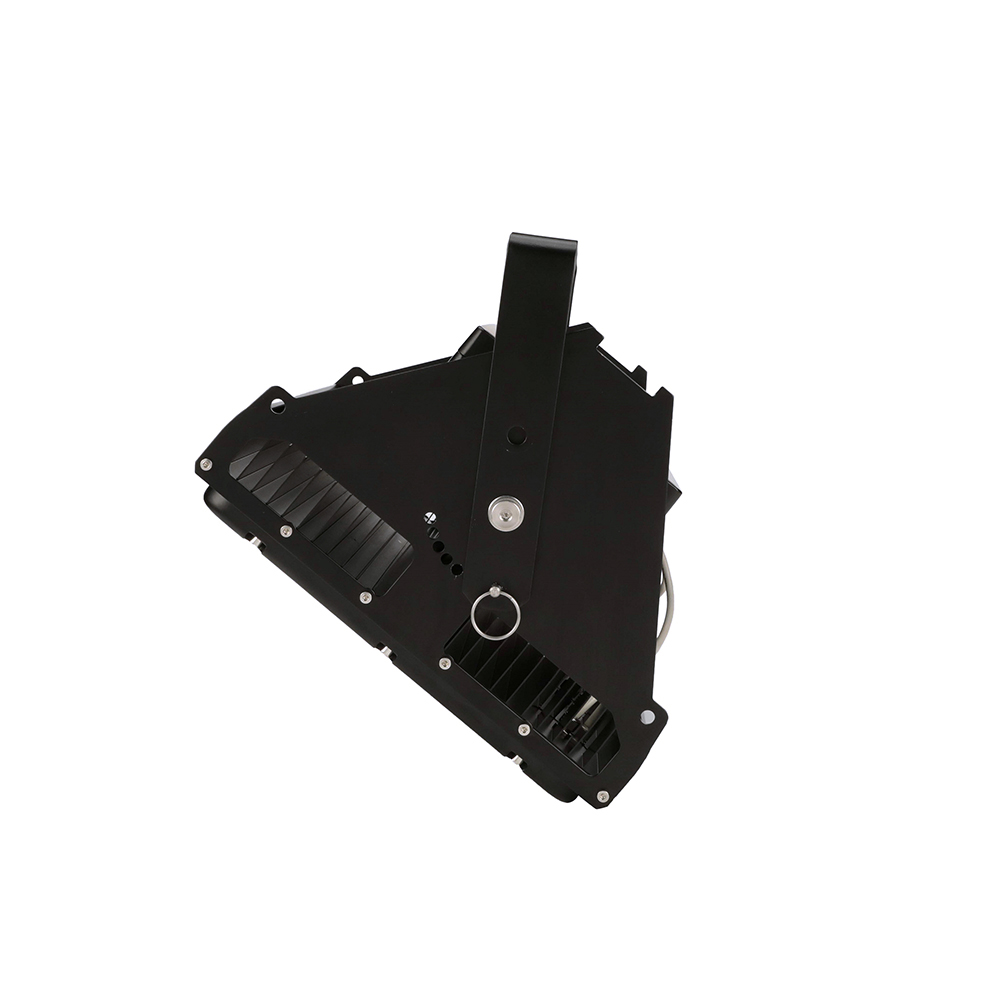

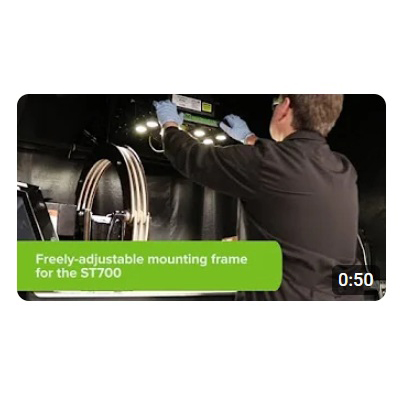

  • Angled mounting brackets
  • No hot-spots in the beam profile
  • Aluminum body in a rugged, durable design
  • No internal fan necessary
  • Aerospace prime and OEM certified
  • Certified to ASTM, AITM, RRES and Nadcap



Ordering Information

North American Model628243

European Model628244

5k Output European Model629257

Product Properties

NDT TypeFluorescent Magnetic Particle Testing, Fluorescent Penetrant Testing

Compliance

StandardsAirbus AITM6-1001, ASTM E2297, ASTM E3022, Rolls Royce RRES 90061
