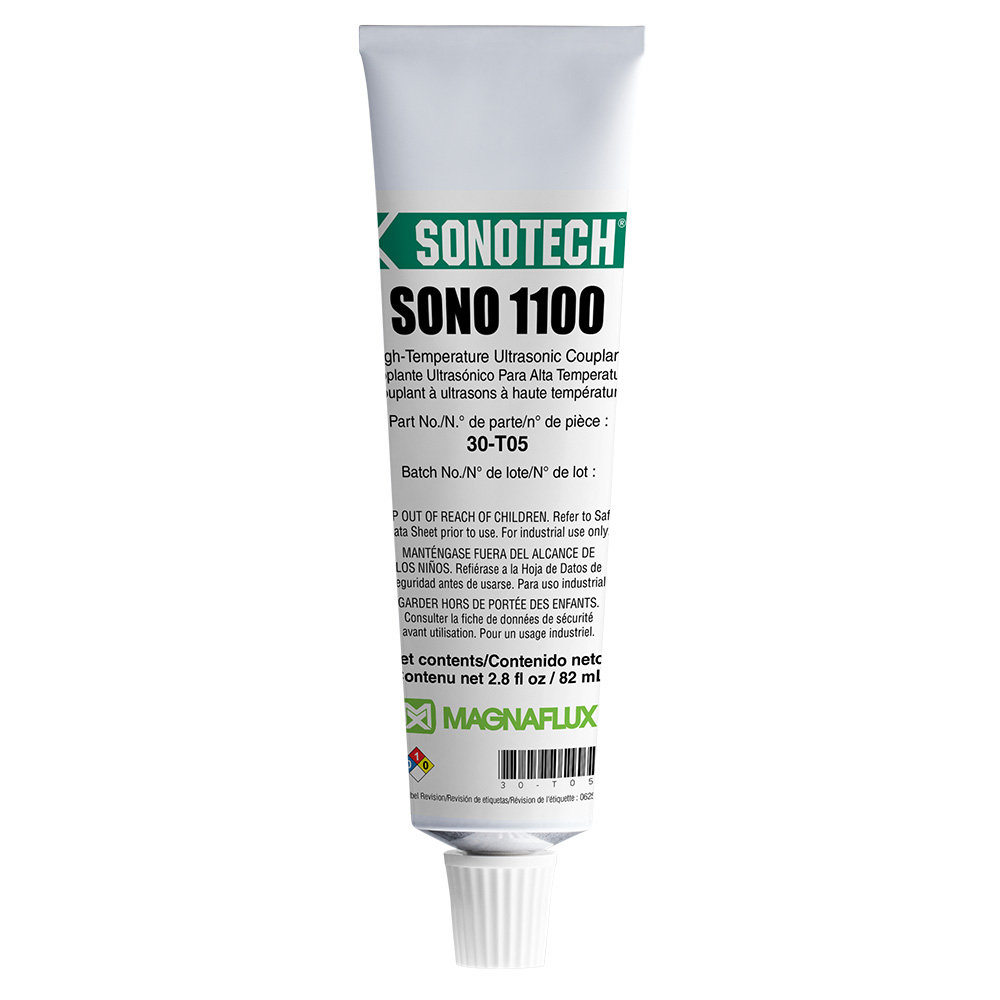

Sono 1100

High-Temperature Ultrasonic Couplant

Sono 1100 provides coupling for high-temperature thickness gauging and will maintain acoustic coupling at high temperatures beyond 15 seconds to give ample time to obtain thickness readings. In most cases, the signal strength increases with time to the point of the couplant’s thermal decomposition.

Recommended temperature range is 700 to 775°F / 371 to 413°C

Benefits

  • Extended open time window for longer inspections or to optimize thickness readings at high temperatures
  • Medium viscosity paste
  • Non-toxic, non-irritating formula
  • Excellent corrosion inhibition

Ordering Information

4 fl oz / 118 mL tubes (case of 6)30-6XT04

1 gal / 3.78 L30-901

Product Properties

NDT TypeUltrasonic Testing

ViscosityMedium Paste

CompatibilityMost metals

Applications

Ideal ApplicationCorrosion testing, High temperature ultrasonic testing, Thickness gauging

Compliance

StandardsAPI, ASME, AWS

Resources

Related Products

  • Sono 600

    Sono 600

    Multi-purpose couplant with a wide temperature range for flaw detection, thickness gauging and acoustic emission testing from 0 to 700°F / -18 to 371°C

  • Pyrogel 100

    Pyrogel 100

    A thick gel wide temperature range couplant for thickness gauging, flow metering, acoustic emissions testing and flaw detection/sizing at -50 to 805°F / -45 to 429°C
